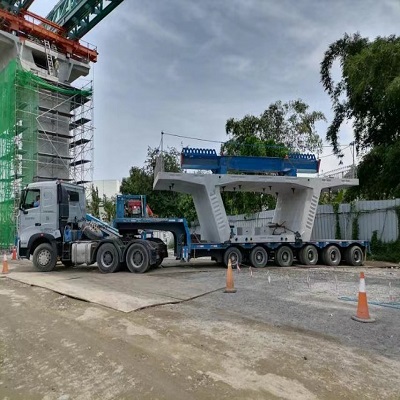

Lowbed steerable trailer is specially made to transport precast beam. It is small turning radius and high passing performance. We make design according to actual road condition and cargo information to produce trailer with low cost and good quality.
The following is 6 axle lowbed steerable trailer detail, which is made according to customer’s actual requirement:
- Material: Q960
- Width of beam is 220mm
- Fixed gooseneck, landing gear
- 6 axle (3 fix + 3 SAF steerable axle)
- Steering angle +/- 23 degrees
- Tire size 235/75R 17.5/6.75
- Loading bed dimension: (LWH) 10.2 x 3.0 x 0.96 meters
- LED sidelights, tail & stop light
- Red & white reflectorized stickers around
- Color: as customer’s request
- Pivot Pin 90#(3.5inch)
- Tool box for 50 ton jacks, tire wrench & tools;
- Steering joints using ball joint and bearing type, not bushing
For steerable axle, when it backing, the axles have locked to prevent the wheels from wrong direction, since it is equipped with electronic lock. Steerable axle adopts shoe brake type and leaf-spring suspension.
