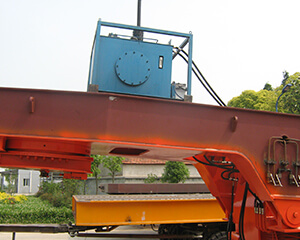

Hydraulic Gooseneck

1.Many people want to know why choose hydraulic gooseneck and why choose draw bar (towing bar)
2.Normally our powered gooseneck is equipped with diesel engine (we call it power pack, too)
Quantity:

Many people want to know why choose hydraulic gooseneck and why choose draw bar (towing bar). Normally our powered gooseneck is equipped with diesel engine (we call it power pack, too).

Feature

1. With goose neck, hydraulic jack(cylinder) in the goose neck will put force on the tractor, no need to put counter weights on the truck(prime mover), and increase payload capacity and maneuverability of modular trailer.
2. In China, gooseneck trailer (called semi trailer) is allowed to run on high speed way, draw bar trailer (called full trailer) is not allowed.
3. Hydraulic gooseneck trailer has more stable and accurate steering compare that of draw bar trailer.
4. The force prime mover bore from gooseneck is adjustable.
5. Height of kin pin is adjustable, so it is easily to detach gooseneck (trailer) from tractor. It is hard to back a draw bar trailer, easy to reverse a neck trailer.

Carol HY szhyhy@hotmail.com +86 18629072795

hydraulic gooseneck2


model 1 specification

Rated 5th-wheel Loading Capacity (kg)

18,000kg – 48,000.00

Dead weight(kg)

7,500

Rear Rotating Radius of Gooseneck (mm)

2500 or customized

Dimension of connecting end (mm)

2,990 x 1,080

Ground clearance (mm)

1,450 / 1,600±300

Turning mechanism

Turntable towing, control steering

Max. turning angle of gooseneck

+70°/-70°

King Pin

3.5inch


hydraulic gooseneck3

model 2 specification

Rated 5-wheel Loading Capacity (kg)

35,000

Dead weight(kg)

5,800

Height of fifth wheel (platform height 1175mm)(mm)

1,400/1,600

Rear rotating radius of Gooseneck (mm)

3,000

Max. turning angle of gooseneck

105°

King Pin

3.5inch

Overall Dimension (mm)(L x W x H)

4,640 x 2,500 x 1,973

hydraulic gooseneck4

Our gooseneck can be connected with original Goldhofer THP/SL modular trailer, Nicolas MDED, Scheuerle InterCombi.
